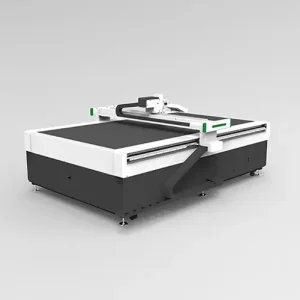

Composite Materials Cutting Machine
Product Description
Oscillating Knife Cutting Machine for Multi-Material Processing
Core Technology:
• CNC-controlled oscillating knife cutting system
• Suitable for fabric, leather, foam, rubber, cardboard, PVC and composite materials
• Supports CAD file import for accurate contour cutting
• Automatic nesting to improve material utilization
• Clean edge cutting without burning, smoke or deformation
learn more
This oscillating knife cutting machine is designed for flexible and non-metal material processing. With CNC digital control and high-frequency knife cutting technology, it can cut complex shapes accurately and efficiently. It is widely used in advertising, packaging, garment, automotive interiors, furniture, gasket, leather goods and composite material industries.
Fixed table Vibrating knife cutting machine feature
1.Rack
High-rigidity frame: It adopts welded steel structure or aluminum alloy frame to ensure the stability and vibration resistance of the equipment and support the precision under high-speed movement.
2.Three-axis motion system
X/Y axis: The servo motor drives the precision ball screw or linear motor to control the planar movement of the cutting head, with positioning accuracy ≤±0.05mm.
Z-axis: Controls the lifting and lowering of the blade head, ADAPTS to different material thicknesses, and can automatically adjust the cutting pressure (adjustable from 0 to 500g).
3.Vibrating knife head module
High-frequency vibrating knife module: The core is an electromagnetic drive or piezoelectric ceramic vibration unit, with a frequency of 20,000-30,000 times per minute, achieving “micro-amplitude high-frequency” cutting and reducing material deformation.
Multi-tool compatible design: Expandable circular knives, indentation wheels, punching needles, etc., to meet complex process requirements.
4.Numerical control system and operation interface
Equipped with industrial-grade PLC or multi-axis motion controller, it parses G-code instructions and coordinates the motion and cutting parameters of each axis.
The touch screen integrates graphical software, supporting CAD/AI file import, path optimization, and parameter setting, simplifying the operation process.
5. Anti-collision device
Reduce the impact loss of mechanical structures and avoid accidental collisions caused by material wrinkles, foreign objects or protrusions on the tabletop.
IGOLDEN cutting machines
Efficient and accurate digital cutting machines for flexible materials such as garment fabrics, leather, cartons, foam boards and more.
Configure the digital cutting system, the cutting head and the right work table according to your individual production requirements and find the right cutting solution for each of your needs.
Parameter & Cutting Sample
| Technical indicators | parameter |

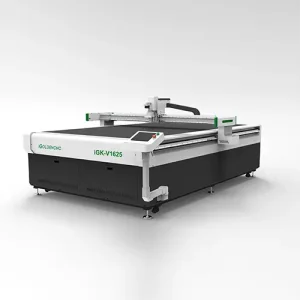

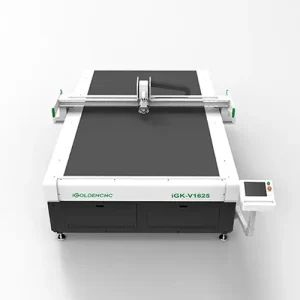

| Model | iGK-V1625 |
| Working Size | 2500（L）*1600mm（W） |
| Dimensions | 3200*2300*1200mm（L*W*H） |
| Machine body | Welded high strength integrated bed |
| Platform | Aerospace aluminum vacuum adsorption platform |
| Platform adsorption material | 4mm felt |
| Tool | Vibrating knife |
| Cutting speed | 200-2600mm/s |
| Translatory velocity | 500-2800mm/s |
| Cutting thickness | 0.1-40mm（The actual materials shall prevail） |
| Cutting accuracy | 0.05mm（The actual materials shall prevail） |
| Operating system | Ruida |
| Vacuum pump | 9KW vacuum pump |
| Drive part | Taiwan straight square rail and rack |
| Miscellaneous function | Cross red light location |
| Motor drive | Servo motor drive |
| Electric device | Chint/Omron |
| Voltage | AC220V/380V,50Hz |
| Weight | 1500KG |
> Used for cutting leather, gasket, PP, PE, EVA, PTFE, ETFE, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, corrugated carton, foam, leather, composite materials, cardboard, corrugated board, honeycomb paper, plastic film, fiber paper, plastic box, re- silient glue, rubber cloth, etc.
> Widely used in sign graphics, digital printing, packaging, automobiles, cruise ships, exhi- bition tools, sign production, gasket materials, crafts and other industries.
