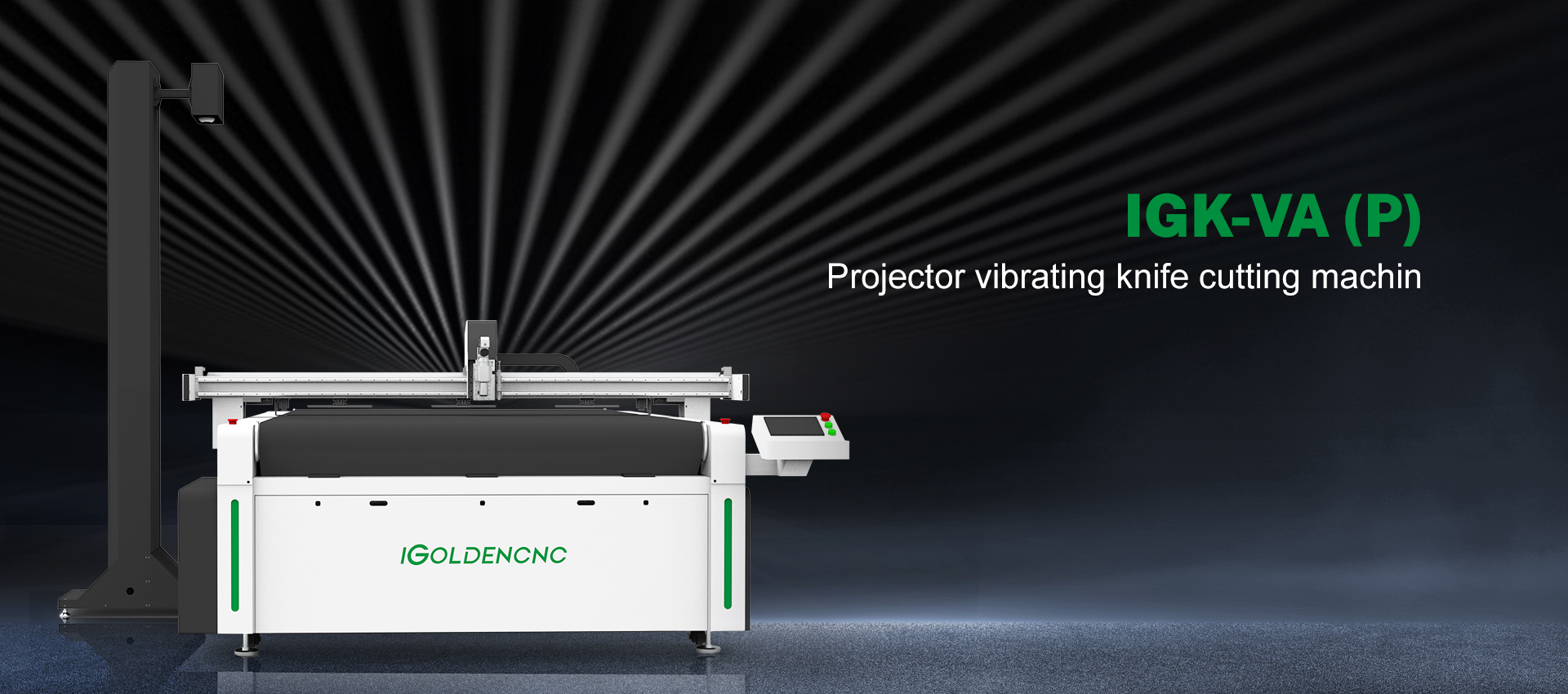

Projection type vibration knife cutting machine
Product Description
Oscillating Knife Cutting Machine for Multi-Material Processing
Core Technology:
• CNC-controlled oscillating knife cutting system
• Suitable for fabric, leather, foam, rubber, cardboard, PVC and composite materials
• Supports CAD file import for accurate contour cutting
• Automatic nesting to improve material utilization
• Clean edge cutting without burning, smoke or deformation
learn more
This oscillating knife cutting machine is designed for flexible and non-metal material processing. With CNC digital control and high-frequency knife cutting technology, it can cut complex shapes accurately and efficiently. It is widely used in advertising, packaging, garment, automotive interiors, furniture, gasket, leather goods and composite material industries.
Projection Vibrationknife cutting machine feature
- Projection vibration knife cutting machine is an innovative intelligent cutting equipment, which integrates optical projection positioning and high-frequency vibration knife tech-nology. Through the high-precision projection system, the design pattern can be project- ed 1:1 on the surface of flexible materials such as leather, composite materials and
- non-woven fabrics in real time, and the operator can intuitively calibrate the cutting path; Equipped with high-frequency micro-amplitude vibration cutter head, to achieve zero contact pressure cutting, smooth incision without burrs, to meet the needs of complex special-shaped pattern cutting.
- It is widely used in sign graphics, digital printing, packaging, automobiles, cruise ships, ex- hibition tools, sign making, gasket materials, crafts and other industries.
IGOLDEN cutting machines
Efficient and accurate digital cutting machines for flexible materials such as garment fabrics, leather, cartons, foam boards and more.
Configure the digital cutting system, the cutting head and the right work table according to your individual production requirements and find the right cutting solution for each of your needs.

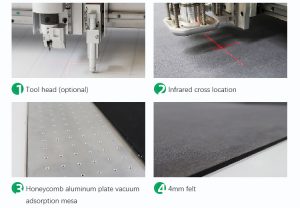

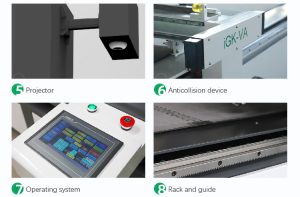

Parameter & Cutting Sample
| Model | iGK-VA1625P |
| Working Size | 1600 (L) *2500mm (W) |
| Machine body | Welded high strength integrated bed |
| Platform | Aerospace aluminum vacuum adsorption platform |
| Platform adsorption material | 4mm felt |
| Tool | Vibrating knife |
| Cutting speed | 200-2600mm/s |
| Translatory velocity | 500-2800mm/s |
| Cutting thickness | 0.1-40mm (The actual materials shall prevail) |
| Cutting accuracy | 0.05mm (The actual materials shall prevail) |
| Operating system | Zhongrui |
| Vacuum pump | 2.2KW*4 vacuum pump |
| Drive part | Taiwan straight square rail and rack |
| Miscellaneous function | Cross red light location |
| Motor drive | Full servo motor drive |
| Electric device | Chint/Omron |
| Voltage | AC220V/380V,50Hz |
> Used for cutting leather, gasket, PP, PE, EVA, PTFE, ETFE, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, corrugated carton, foam, leather, composite materials, cardboard, corrugated board, honeycomb paper, plastic film, fiber paper, plastic box, re- silient glue, rubber cloth, etc.
> Widely used in sign graphics, digital printing, packaging, automobiles, cruise ships, exhi- bition tools, sign production, gasket materials, crafts and other industries.
